APC SMT2200I Smart UPS 2200VA LCD 230V
Special Price
KWD 280.000
Regular Price
KWD 285.000
Out of stock
SKU
SMT2200I

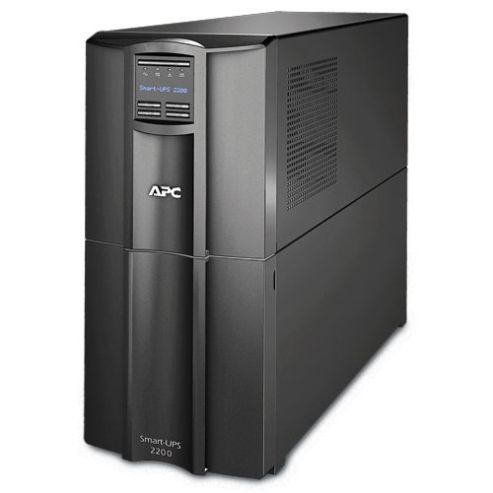

The APC SMT2200I Smart-UPS 2200VA LCD 230V is a line-interactive tower UPS designed to provide pure sine wave power protection for critical IT infrastructure like servers, networking gear, and storage systems.
| Specification | Details |
|---|---|
| PRODUCT TYPE | Uninterruptible Power Supply (UPS) |
| TOPOLOGY | Line Interactive |
| WAVEFORM | Pure Sine Wave |
| FORM FACTOR | Tower (Non-Rackmountable) |
| COLOR | Black |
| WARRANTY | 1 Year |
| RATED POWER | 1980 Watts / 2200 VA |
| MAX CONFIGURABLE POWER | 1980 Watts / 2200 VA |
| NOMINAL OUTPUT VOLTAGE | 230V (Configurable: 220V / 240V) |
| OUTPUT FREQUENCY |
47–53 Hz (50Hz) 57–63 Hz (60Hz) sync to mains |
| HARMONIC DISTORTION | Less than 5% at full load |
| OUTPUT CONNECTIONS |
8 × IEC 320 C13 1 × IEC 320 C19 2 × IEC Jumper Cables |
| NOMINAL INPUT VOLTAGE | 230V AC (Also supports 220V / 240V) |
| INPUT VOLTAGE RANGE | 160–286V (Adjustable: 151–302V) |
| INPUT FREQUENCY | 50/60 Hz ±3 Hz (Auto-sensing) |
| INPUT CONNECTION TYPES |
IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British Plug |
| BATTERY TYPE | Sealed Lead-Acid (Maintenance-Free) |
| REPLACEMENT BATTERY | RBC55 |
| BATTERY RECHARGE TIME | 3 Hours |
| BATTERY LIFE | 3 – 5 Years |
| CHARGER POWER | 260 W Rated |
| RUNTIME (FULL LOAD 1980W) | Approx. 8 minutes 42 seconds |
| CONTROL PANEL | Multifunction LCD Status and Control Console |
| COMMUNICATION PORTS | USB, RS-232, SmartSlot |
| REMOTE MONITORING | EcoStruxure IT, PowerChute, third-party systems |
| EMERGENCY POWER OFF (EPO) | Yes |
| ALARMS | On Battery, Low Battery, Overload, Configurable Delays |
| SURGE ENERGY RATING | 365 Joules |
| NOISE SUPPRESSION |
Full-time multi-pole filtering 0ms clamping response 0.3% IEEE let-through |
| OPERATING TEMPERATURE | 0 – 40°C |
| STORAGE TEMPERATURE | -15 – 45°C |
| OPERATING ALTITUDE | 0 – 10,000 ft |
| STORAGE ALTITUDE | 0 – 15,240 meters |
| HUMIDITY | 0 – 95% (non-condensing) |
| ACOUSTIC NOISE | 45 dBA |
| HEAT DISSIPATION | 275 BTU/h |
| IP PROTECTION CLASS | IP20 |
| DIMENSIONS (H × W × D) | 43.5 cm × 19.7 cm × 54.4 cm |
| WEIGHT | 48.8 kg |
| PACKAGE DIMENSIONS | 69.9 cm × 76.2 cm × 38.1 cm |
| SHIPPING WEIGHT | 61.9 kg |
| CERTIFICATIONS | CE, EAC, RCM, VDE |
| STANDARDS |
EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| COUNTRY OF ORIGIN | Philippines (PH) |
| Delivery Time | 1-2 Working Days |
|---|
